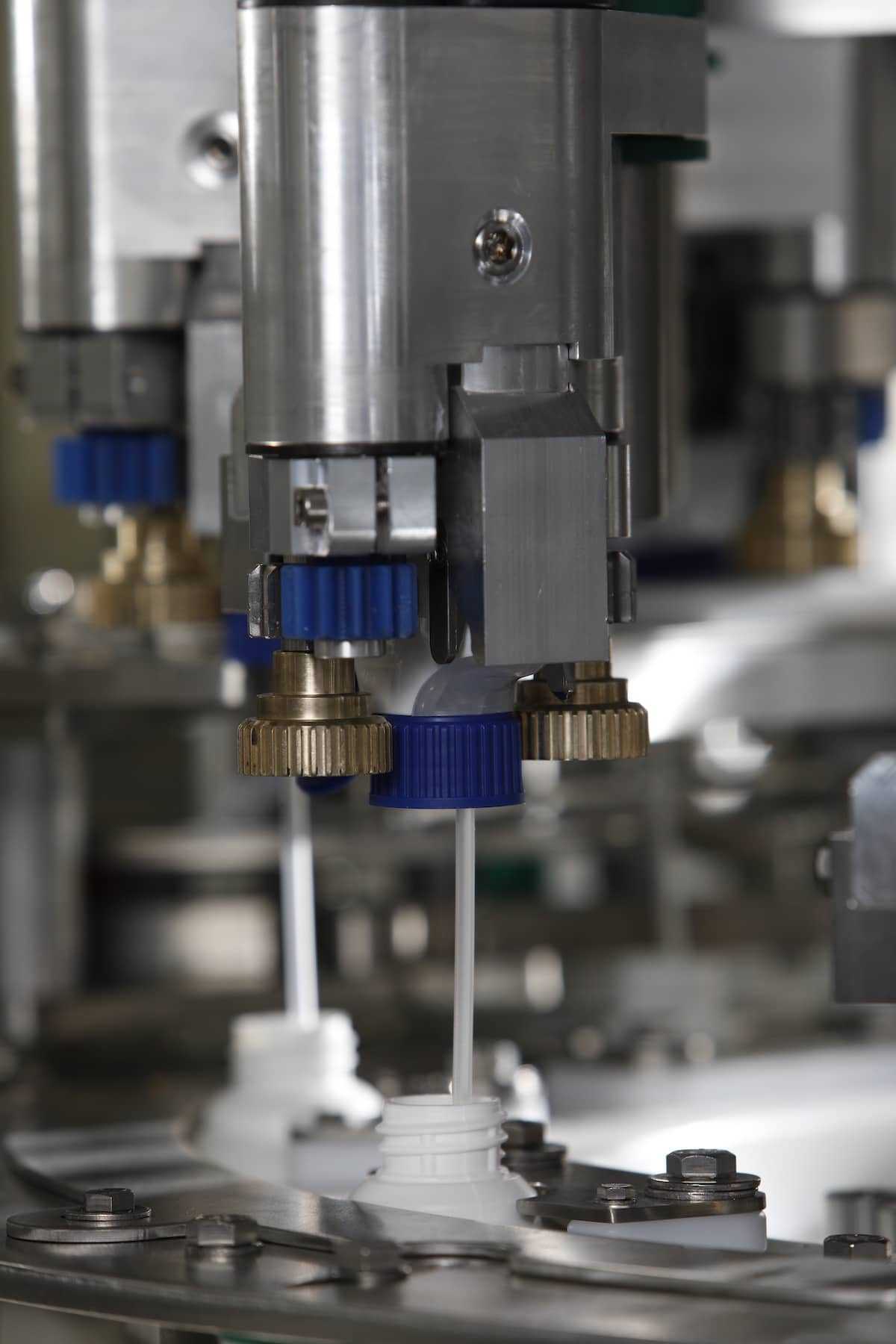

Fully Automatic High-Speed Rotary Trigger Cap Capping Machine for Industrial Bottle Packaging
1. Product Introduction
The fully automatic high-speed rotary trigger cap capping machine is a professional industrial capping solution specially developed for trigger spray caps, gun caps, and pump caps widely used in daily chemicals, cosmetics, household cleaning products, and industrial chemicals. Adopting advanced rotary disc continuous operation structure, this machine abandons the traditional intermittent capping mode, realizing uninterrupted high-speed bottle feeding, cap sorting, cap feeding, torque screwing and bottle discharging. Different from linear capping equipment, the rotary design greatly improves production efficiency and operation stability, effectively solving common problems such as low output, uneven capping, and cap missing in traditional capping machines.
Equipped with intelligent PLC control system and precision servo torque adjustment system, the machine supports full-automatic unmanned operation. It can automatically identify cap placement status, adjust screwing torque in real time, and ensure every trigger cap is tightly and uniformly sealed without cap damage, sliding thread or loose capping. The whole machine adopts food-grade 304 stainless steel structure, which is corrosion-resistant, easy to clean, and fully compliant with international food and cosmetic production hygiene standards, suitable for long-term continuous industrial production.
2. Core Main Features
This high-speed rotary trigger capping machine integrates intelligent control, precision transmission and humanized design, with multiple competitive advantages for commercial mass production:
-
Ultra-high Speed Continuous Operation: Rotary disc circulating working mode realizes non-stop capping, far exceeding the production efficiency of linear intermittent capping machines, meeting the high-output production needs of large and medium-sized factories.
-
Precision Servo Torque Control: Independent servo motor controls capping torque accurately, supporting stepless adjustment. It effectively avoids over-tightening cap damage or loose sealing, ensuring 100% qualified capping rate for trigger gun caps.
-
Wide Compatibility & Strong Adaptability: It fits various specifications of trigger caps, spray gun caps and pump caps, compatible with round, oval and regular square bottles. Fast mold changeover realizes flexible switching of different products without complicated debugging.
-
Intelligent Automatic Detection System: Built-in photoelectric sensor intelligent identification function, automatically detects missing caps, misplaced caps and empty bottles, and triggers automatic alarm and shutdown protection to reduce product waste.
-
Durable & Hygienic Structure: The whole machine is made of SUS304 stainless steel and high-precision aluminum alloy accessories, wear-resistant and anti-corrosion. Smooth surface without dead corners, convenient for daily cleaning and maintenance, meeting GMP production standards.
-
Low Failure Rate & Easy Operation: Human-machine touch screen interface realizes one-click start, parameter setting and fault query. The modular structure design reduces later maintenance cost and downtime, improving overall production continuity.
-
Seamless Production Line Integration: It can be perfectly matched with filling machines, labeling machines, bottle arranging machines and coding machines to form a fully automatic integrated bottling production line, realizing one-stop packaging operation.
3. Technical Parameters
|
Item
|
Technical Specification
|
|---|---|
|
Machine Model
|
High-speed Rotary Trigger Capping Machine
|
|
Applicable Cap Type
|
Trigger cap, spray gun cap, pump cap, screw cap
|
|
Applicable Bottle Type
|
Round, oval, square plastic/glass bottles
|
|
Production Capacity
|
80-200 bottles per minute (adjustable)
|
|
Capping Torque Range
|
0.5-15N·m (stepless adjustable)
|
|
Capping Qualified Rate
|
≥99.8%
|
|
Power Supply
|
220V/380V 50/60Hz
|
|
Total Power
|
3.5KW
|
|
Machine Material
|
SUS304 Stainless Steel + Aluminum Alloy
|
|
Control System
|
PLC + Touch Screen + Servo Control
|
|
Machine Dimension
|
2200*1500*1800mm
|
|
Weight
|
850KG
|
4. Application Industry
This fully automatic rotary trigger cap capping machine is widely used in mass production packaging of various industries with trigger cap and gun cap products, covering multiple downstream industrial fields with high market demand:
-
Daily Chemical Industry: Disinfectant spray, alcohol spray, hand sanitizer, detergent, glass cleaner, air freshener and other daily chemical products with trigger gun caps.
-
Cosmetic Industry: Cosmetic spray, skincare toner, hair spray, beauty essential oil and other cosmetic bottle capping production.
-
Chemical Industry: Industrial cleaning agent, pesticide spray, chemical solvent and other industrial chemical packaging with sealed gun caps.
-
Automotive Maintenance Industry: Car cleaning spray, tire maintenance agent, lubricant spray and other auto care product capping.
-
Pharmaceutical Industry: Medical disinfectant spray, rehabilitation spray and other medical packaging products requiring high sealing standards.
Whether it is small-batch customized production or large-scale standardized mass production, this machine can perfectly adapt to production requirements and provide stable and efficient capping solutions for packaging enterprises.
5. Product Advantage Comparison (Rotary vs Linear Capping Machine)
|
Comparison Item
|
High-speed Rotary Trigger Capping Machine
|
Traditional Linear Capping Machine
|
|---|---|---|
|
Working Mode
|
Continuous rotary non-stop operation
|
Intermittent start-stop operation
|
|
Production Speed
|
80-200 bottles/min, ultra-high efficiency
|
30-60 bottles/min, low output
|
|
Capping Stability
|
Uniform torque, 99.8% pass rate
|
Unstable torque, easy loose cap
|
|
Failure Rate
|
Low failure rate, stable long-term operation
|
High jamming rate, frequent downtime
|
|
Product Compatibility
|
Wide range, fast mold change
|
Single specification, complicated adjustment
|
|
Applicable Scenario
|
Large-scale factory mass production
|
Small workshop small-batch production
|
|
Long-term Cost
|
Low maintenance cost, high ROI
|
High maintenance cost, low efficiency
|
6. Frequently Asked Questions (FAQ)
We have sorted out the most concerned questions for global buyers about the high-speed rotary trigger cap capping machine to help you quickly understand the product performance and service details:
Q1: What types of trigger caps and bottles can this machine support?
A: This machine is specially designed for all kinds of trigger spray gun caps, pump caps and threaded caps. It is compatible with plastic and glass bottles in round, oval and regular square shapes. We can customize fixtures according to your unique bottle and cap sizes to achieve perfect matching.
Q2: What is the maximum production speed of this rotary capping machine?
A: The standard model supports adjustable production speed from 80 to 200 bottles per minute. For large-scale production demands, we can customize multi-head high-speed models to increase output, fully meeting the mass production needs of medium and large packaging factories.
Q3: Will the machine scratch or damage the trigger cap during capping?
A: No. Equipped with precision servo torque control and soft rubber clamping fixture, the machine realizes flexible capping. It can accurately control the screwing force without scratching the cap surface or damaging the bottle body, ensuring intact product appearance and qualified sealing effect.
Q4: Is the machine easy to operate and maintain for new workers?
A: Very easy. The machine adopts intelligent touch screen one-key operation, with simple parameter setting and visual fault prompt. We provide English operation manual and video tutorial. The modular structure design makes daily cleaning and maintenance more convenient, no professional technical operation required.
Q5: Can this machine be connected with my existing production line?
A: Yes. This rotary capping machine supports customized docking parameters, which can be seamlessly connected with most mainstream filling machines, labeling machines and coding machines on the market. Our technical team will provide free line matching scheme according to your existing equipment parameters.
Q6: What is your delivery time and after-sales service?
A: Standard machine delivery time is 7-15 working days; customized models are 15-30 working days. We provide overseas remote installation guidance, lifelong technical consultation, spare parts replacement service and 1-year full machine warranty.
7. CTA Ending Paragraph
If you are looking for a high-efficiency, stable and low-maintenance automatic trigger cap capping machine for your daily chemical, cosmetic or industrial packaging production line, our fully automatic high-speed rotary capping equipment is your ideal choice. With stable performance, high capping qualification rate and flexible customization service, it can effectively reduce your labor cost and improve production efficiency and product competitiveness. We support OEM & ODM customization according to your bottle size, cap specification and production output requirements. Welcome to send us your product samples and detailed production demands, our professional engineering team will tailor the most suitable packaging solution for you and provide the latest factory direct quotation immediately!
